Edit Table Plugin

Edit tables using edit fields, date pickers and drop down boxes

Simply add an [ Edit table ] button to an existing table by writing %EDITTABLE{}% directly above the table. This can be added to tables that are formatted with Table Plugin: add the EDITTABLE macro just above or below the TABLE tag. It can also be used without any TABLE tag.

Customize entry fields by specifying the format: use a text field, a drop down box, a date field, radio buttons or checkboxes.

Multiple tables per topic are editable, but only one at a time can be edited.

Per Table Settings

Add a %EDITTABLE{...}% macro just before an existing table to make it editable, or add the variable anywhere in a topic to start a new table.

  • Supported attributes:
Attribute Comment Default
header
Specify the header format of a new table like "|*Food*|*Drink*|". Useful to start a table with only a button
(no header)
format
The format of one column when editing the table. A cell can be a text input field, or any of these edit field types:

• Text input field (1 line):
  | text, <size>, <initial value> |

• Textarea input field:
  | textarea, <rows>x<columns>, <initial value> |

• Drop down box:
  | select, <size>, <option 1>, <option 2>, etc* |
  * only one item can be selected

• Radio buttons:
  | radio, <size*>, <option 1>, <option 2>, etc |
  * size indicates the number of buttons per line in edit mode

• Checkboxes:
  | checkbox, <size*>, <option 1>, <option 2>, etc |
  * size indicates the number of checkboxes per line in edit mode

• Fixed label:
  | label, 0, <label text> |

• Row number:
  | row, <offset> |

• Date:
  | date, <size>, <initial value>, <DHTML date format> | (see Date Field Type)
"text, 16"
for all cells
changerows
Rows can be added and removed if "on"
Rows can be added but not removed if "add"
Rows cannot be added or removed if "off"
CHANGEROWS
plugin setting
quietsave
Quiet Save button is shown if "on", hidden if "off"
QUIETSAVE
plugin setting
include
Other topic defining the EDITTABLE parameters. The first %EDITTABLE% in the topic is used. This is useful if you have many topics with the same table format and you want to update the format in one place. Use topic or web.topic notation.
(none)
helptopic
Topic name containing help text shown below the table when editing a table. The %STARTINCLUDE% and %STOPINCLUDE% macros can be used in the topic to specify what is shown.
(no help text)
headerislabel
Table header cells are read-only (labels) if "on"; header cells can be edited if "off" or "0"
"on"
editbutton
Set edit button text, e.g. "Edit this table"; set button image with alt text, e.g. "Edit table, %PUBURL%/%SYSTEMWEB%/DocumentGraphics/edittopic.gif"; hide edit button at the end of the table with "hide" (Note: Button is automatically hidden if an edit button is present in a cell)
EDITBUTTON
plugin setting
buttonrow
Set to top to put the edit buttons above the table.
bottom
javascriptinterface
Use javascript to directly move and delete row without page refresh. Enable with "on", disable with "off".
JAVASCRIPTINTERFACE
plugin setting

Using Macros in the Format Parameter

By default, macros in <initial value> (of text input field) and <label text> (of fixed label) get expanded when a new row is added. This can be used for example to add a timestamp to a label. You can escape characters with format tokens if you do not want that.

Any macro inside a table cell will be preserved. For instance, %TOPIC% will not get expanded to the current topic name.

The format tokens are the same as with Formatted Search:

Escape: Expands To:
$n or $n()
New line. Use $n() if followed by alphanumeric character, e.g. write Foo$n()Bar instead of Foo$nBar
$nop or $nop()
Is a "no operation".
$quot
Double quote (")
$percnt
Percent sign (%)
$dollar
Dollar sign ($)

Date Field Type

Edit Table Calendar Example

The date field type allows one to choose a date with a popup calendar. Popup calendar works with all modern browsers. The date picker button is inactive if the browser cannot support the popup calendar or if Javascript is disabled.

The optional date format specifiers are described in the JSCalendarContrib documentation. When time specifiers are used, the calendar allows one to choose a date and a time.

In some rare cases, if you pass the date format in %EDITTABLE{format="..."}% and the date format components are adjacent, you must escape the % characters to $percnt to prevent that the components are expanded as macros. For example:
%EDITTABLE{format="|date,15,,$percntY$percntm$percntd|"}%

Per Cell Settings

An individual edit field type can be defined for each table cell. Place an %EDITCELL{ "type, ..." }% macro at the end of the cell content. This is useful to override the per column %EDITTABLE{ format="..." }% settings, or to create tables with key/value rows. All edit field types of the format="..." parameter are supported. For example, to define a text field, type: | cell content %EDITCELL{ "text, 20" }% |

It is also possible to place the edit button inside a cell instead of default location below the table. Type | %EDITCELL{ "editbutton, 1, Edit this table" }% | to show a button, or | %EDITCELL{ "editbutton, 1, Edit table, Image-URL" }% | to show a button image with alternate text.

Note: The %EDITCELL{ }% macro cannot be used by itself; place an %EDITTABLE{ }% variable at the beginning of a table where you want to use %EDITCELL{ }% variables.

Table Buttons

  • In page view mode:
    • - turn the table into edit mode
  • In edit mode:
    • - save your changes
    • - save your changes without alerting subscribed Web Notify users
    • - add row to the table (if enabled)
    • - remove last row from the table (if enabled)
    • - cancel without saving and release edit lock
    • - Move a row by clicking this button next to the row to be moved, then at a destination.
    • - Deletes the row next to this button.

Examples

Line before table:
%EDITTABLE{ format="| row, -1 | text, 20, init | select, 1, one, two, three, four | radio, 3,:-),:-I,:-( | label, 0, %SERVERTIME{"$day $mon $year $hour:$min"}% |" changerows="on" }%
Nr Text field Drop down Mood Timestamp
1
hello table
one
smile
26 Jun 2002 12:30
2

two
frown, sad smile
27 Jun 2002 12:40

Note: Please do not save this example table! Use Foswiki:Sandbox.EditTablePluginTesting if you want to try out this Plugin

If this plugin is installed you will see an [ Edit table ] button above; if you were to click on it you get this form:

Nr Text field Drop down Mood Timestamp
1 smile indifferent frown 26 Jun 2002 12:30
2 smile indifferent frown 27 Jun 2002 12:40

The following example shows a simple table with key/value rows. The default edit field type for the value column is a text field. This is overloaded by a selector for the Gender, and a date picker for the DOB. This is typically used by Foswiki applications where new topics with tables are created based on a template topic.

You type:
%TABLE{"headerrows="1"}%
%EDITTABLE{ format="| label | text, 40 |" changerows="off" }%
|*Key*|*Value*|
| Name: | John Smith |
| Gender: | M %EDITCELL{select, 1, , F, M}% |
| DOB: | 1999/12/31 %EDITCELL{date, 10}% |
| City: | New York |

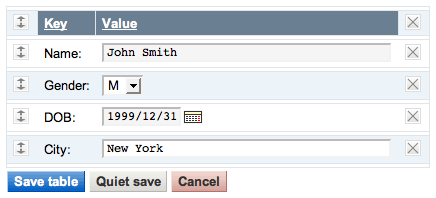

You get: Table in edit mode:
EDITCELL Example in view mode EDITCELL Example in edit mode

Plugin Settings

You can override the default settings for the plugin by defining the following preferences. Note: Texts inside %MAKETEXT{}% are translated into other languages.
Preference Meaning Default
EDITTABLEPLUGIN_JAVASCRIPTINTERFACE
Set to 0 to be disable the ability to directly move and delete row without page refresh. Can be overridden with parameter javascriptinterface
1
EDITTABLEPLUGIN_CHANGEROWS
Default for change rows flag: on, off, add
on
EDITTABLEPLUGIN_QUIETSAVE
Default flag for quiet save option: on to show the Quiet Save button, off to hide
on
EDITTABLEPLUGIN_EDIT_BUTTON
Specify button text, or alternate text, image URL.
Edit this table, edittable.gif
EDITTABLEPLUGIN_SAVE_BUTTON
Specify button text, or alternate text, image URL.
Save table
EDITTABLEPLUGIN_QUIET_SAVE_BUTTON
Specify button text, or alternate text, image URL.
Quiet save
EDITTABLEPLUGIN_ADD_ROW_BUTTON
Specify button text, or alternate text, image URL.
Add row
EDITTABLEPLUGIN_DELETE_LAST_ROW_BUTTON
Specify button text, or alternate text, image URL.
Delete last row
EDITTABLEPLUGIN_CANCEL_BUTTON
Specify button text, or alternate text, image URL.
Cancel
EDITTABLEPLUGIN_INCLUDED_TOPIC_DOES_NOT_EXIST
Default help texts
Warning: 'include' topic does not exist!

Note: The Plugin uses base settings like date format, language and style from the JSCalendar Contrib.

Limitations and Known Issues

  • This Plugin does not support table formatting like Multi-span cells (e.g. | ... ||) and cell justification (e.g. |  centered  |   right |)
  • There is a performance issue when editing a large table, say, with more then 50 rows
  • You cannot put two %EDITTABLE{}% statements on the same line in the source
  • You can include %-vars now in select values, by quoting them with <nop>, as in %<nop>X% for %X%, say for instance:
    select,1,%<nop>X%,%<nop>Y%
  • The %EDITTABLE{}% macro may not be split over multiple lines

Installation Instructions

You do not need to install anything in the browser to use this extension. The following instructions are for the administrator who installs the extension on the server.

Open configure, and open the "Extensions" section. "Extensions Operation and Maintenance" Tab -> "Install, Update or Remove extensions" Tab. Click the "Search for Extensions" button. Enter part of the extension name or description and press search. Select the desired extension(s) and click install. If an extension is already installed, it will not show up in the search results.

You can also install from the shell by running the extension installer as the web server user: (Be sure to run as the webserver user, not as root!)
cd /path/to/foswiki
perl tools/extension_installer <NameOfExtension> install

If you have any problems, or if the extension isn't available in configure, then you can still install manually from the command-line. See https://foswiki.org/Support/ManuallyInstallingExtensions for more help.

Test if the Plugin is correctly installed:
  • Check above example if there is an [ Edit table ] button below the table in above example
  • Click on [ Edit table ], make changes and save the table

License

  • The Edit Table Plugin is released under the GPL
